DOING continuous pyrolysis machine in China

In the growing field of waste recycling and energy recovery, continuous pyrolysis technology stands out. As a global supplier of pyrolysis machines, DOING Group offers advanced continuous pyrolysis machines that deliver unparalleled efficiency, sustainability, and profitability. If you're considering upgrading from a traditional batch system or considering an investment recovery solution, this introduction to our continuous pyrolysis machines will show you why it's a smart choice.

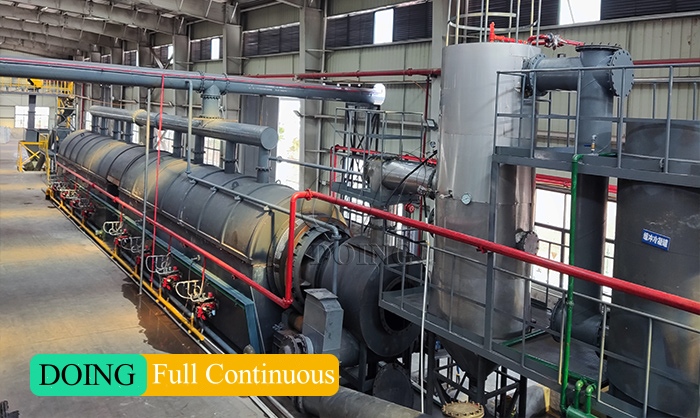

DOING continuous pyrolysis machine

A continuous pyrolysis machine is an advanced system designed to continuously thermally decompose waste materials (such as scrap tires, plastics, rubber, oil sludge, and other organic solids) into valuable end-products such as fuel oil, carbon black, and syngas. Unlike batch and semi-continuous pyrolysis machines, which require frequent cooling, unloading, and reheating cycles, a continuous pyrolysis system is equipped with automatic feeding and unloading devices and can operate 24/7 for approximately 40 days.

Machine Configuration

DOING Group's continuous pyrolysis machines are meticulously designed for seamless operation and optimized output. The core components include:

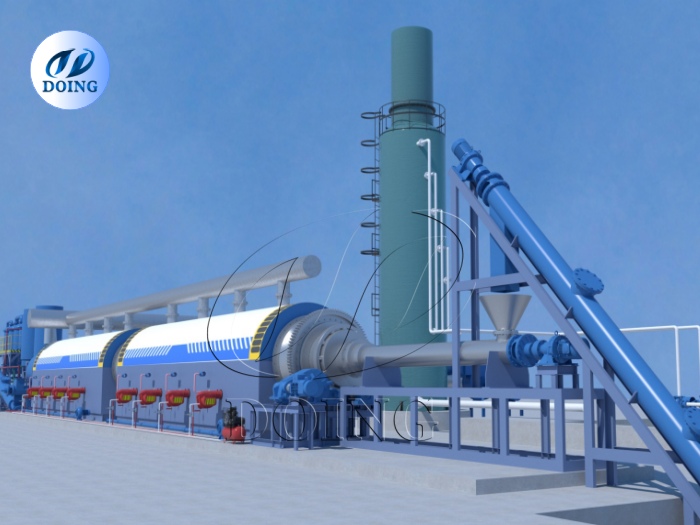

Automated Feeding System: The process begins with a multi-stage feeding mechanism, including a hydraulic feeder, screw conveyor, and sealed inlet. Waste materials are pre-shredded and fed continuously into the reactor at a controlled rate. This system uses variable-speed motors and sensors to prevent overfeeding, ensuring even distribution and avoiding pressure buildup.

DOING continuous pyrolysis machine feeding system

Horizontal Rotary Reactor: The heart of the machine is a double-layer, horizontal cylindrical reactor made from high-grade boiler steel (Q245R, Q345R or other stainless steel materials) with 14-20mm thickness for durability under 300-400°C temperatures. Its internal design features a patented spiral decoking system that facilitates material flow and prevents residue adhesion. The reactor's length-to-diameter ratio optimizes residence time, allowing precise control over decomposition for maximum yield.

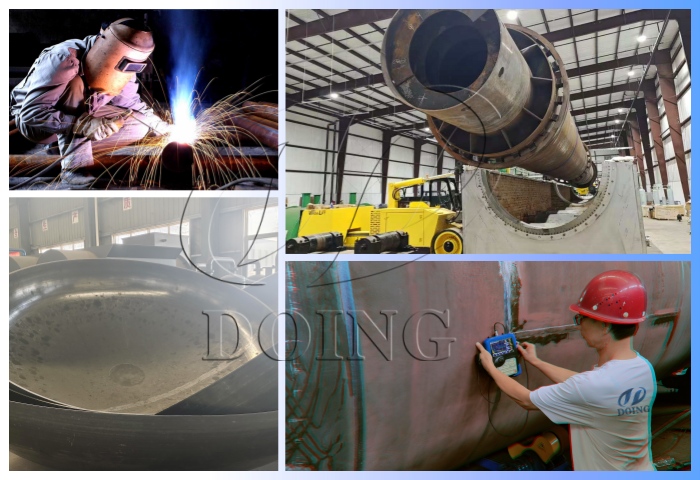

DOING continuous pyrolysis machine reactor manufacturing

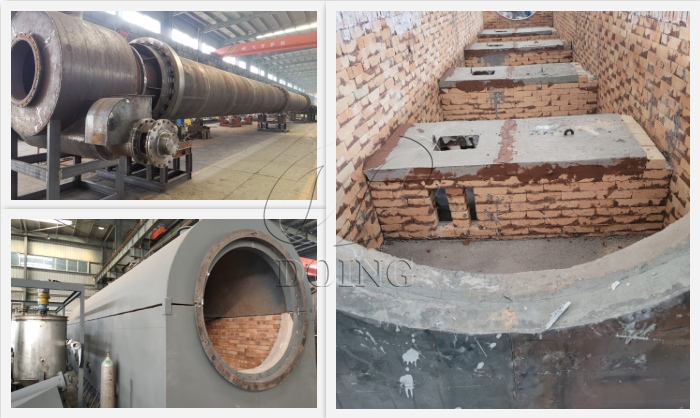

Heating and Combustion System: Efficient heating is provided by a multi-fuel burner (supporting wood, coal, diesel, natural gas, or syngas recycling) connected to the reactor's outer jacket. Our latest heating system is a hot air furnace. This heating method can not only maintain a high temperature continuously, but also avoids direct contact with open flames, resulting in a longer service life for the reactor.

DOING continuous pyrolysis machine furnace

Condensation and Oil Collection System: Vapors from the reactor are piped through a multi-stage condenser (horizontal and vertical types) cooled by water circulation. This system separates pyrolysis oil with a yield of 40-50%, while non-condensable gases are captured for reuse.

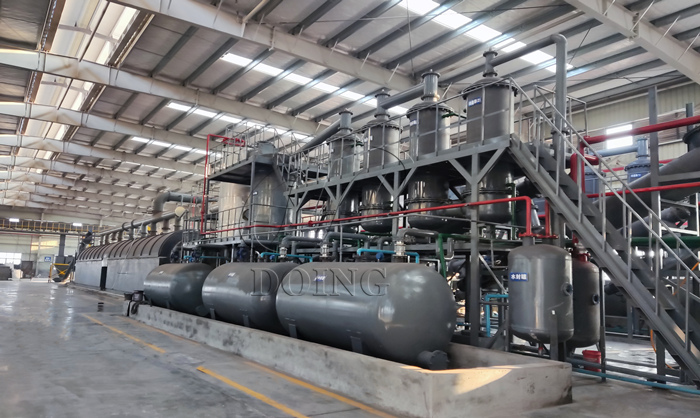

DOING continuous pyrolysis machine condensation system

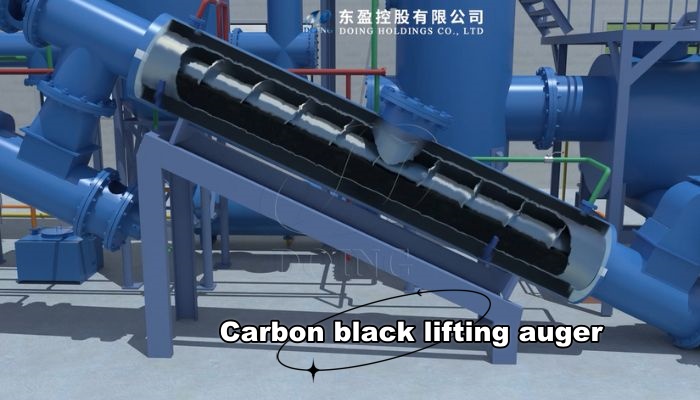

Discharging and Cooling System: At the reactor's outlet, a water-cooled screw discharger continuously removes carbon black at temperatures below 100°C, preventing re-polymerization.

DOING continuous pyrolysis machine carbon black lifting auger

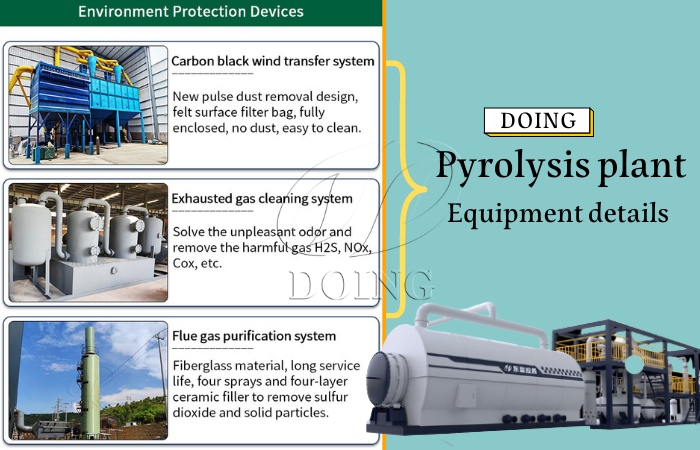

Gas Purification and Safety System: Syngas (10-20% yield) is purified via a cyclone dust remover, filters, and desulfurization tower to meet emission standards. Safety features include pressure relief valves, explosion-proof motors, PLC automation controls, and smoke monitors.

DOING continuous pyrolysis machine PLC environment protection devices

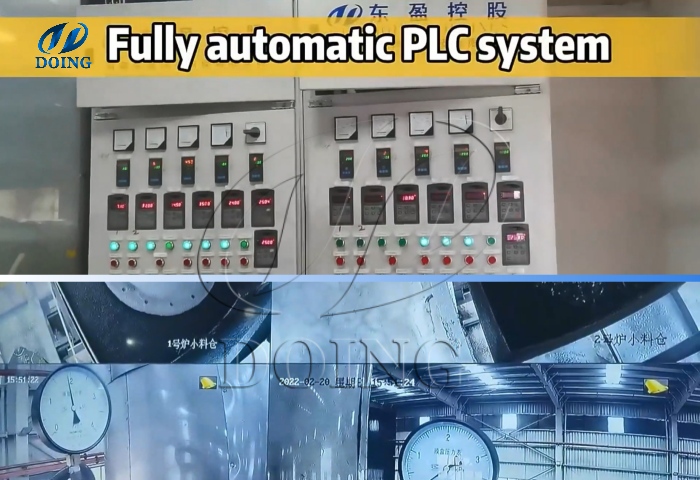

Control and Auxiliary Systems: A central PLC interface monitors all parameters (temperature, pressure, flow rates) in real-time, with remote diagnostics for maintenance.

DOING continuous pyrolysis machine PLC system

Key Features and Benefits

DOING Group's continuous pyrolysis machines are meticulously designed to offer competitive advantages in the waste-to-energy market. Features include:

1 24/7 Non-Stop Operation: Our continuous feeding and unloading mechanism eliminates the downtime associated with batch systems. This significantly increases daily output and maximizes equipment capacity. Each continuous pyrolysis line can process up to 50 tons of feedstock per day and operate continuously for 40 days.

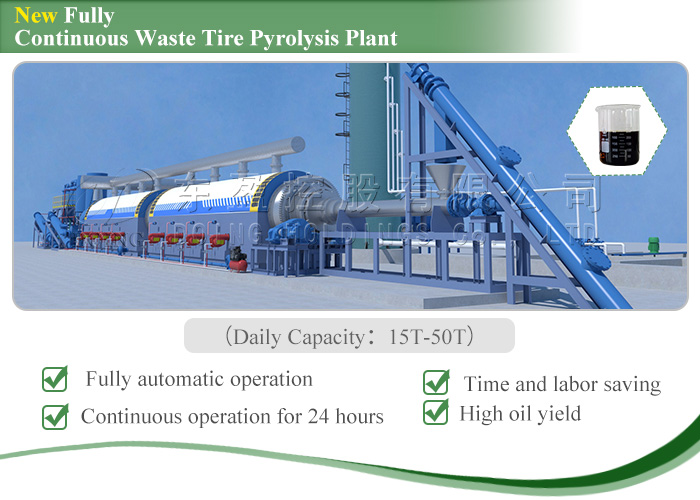

DOING continuous pyrolysis machine features

2 Improved Economic Efficiency: Maximizes Return on Investment (ROI): High daily output and continuous operation directly contribute to increased revenue streams.

3 Reduced Labor Costs: Automation significantly reduces the need for labor, thereby lowering operating costs.

4 Energy Self-Sufficiency: Utilizing syngas for internal heating significantly reduces external energy consumption and costs.

5 Superior Safety and Environmental Compliance: Sealed System Design: Our continuous pyrolysis machines utilize a fully sealed system from feeding to unloading, ensuring zero leakage of hazardous gases and dust. This ensures a safe working environment and prevents environmental contamination.

6 Advanced Residue Management: A specialized reactor and piping design prevents clogging and residue buildup, ensuring long-term smooth operation and minimizing maintenance downtime.

7 Comprehensive Off-Gas Treatment: All process gases undergo rigorous treatment before discharge to meet environmental standards.

8 Precise Process Control and Product Quality: Adjustable Temperature and Residence Time: Operators can fine-tune these critical parameters to precisely control the pyrolysis process and optimize the quality and yield of fuel oil, carbon black, and syngas.

9 Adaptability and Reliability: Capable of processing a wide range of organic wastes such as waste tires, rubber, plastic, aluminum-plastic composites, medical waste, household waste, acrylic, resin powder, fiberglass, epoxy resin, photovoltaic panels, high-temperature die head materials, fan blades, rosin, diatomaceous earth, etc., our equipment flexibly meets diverse waste management needs.

DOING continuous pyrolysis machine raw materials

10 Proven Durability: Our equipment utilizes high-quality materials and robust engineering for durability and stable performance.

11Customized services: DOING’s pyrolysis equipment is offered with flexible customization to fit every project. We tailor feasibility studies, feedstock evaluation, process design, and scale-up to your target throughput. Module-based configurations cover reactor type, feed system, heat source, and integration with automatic control, and gas cleaning.

12 Extensive Experience: DOING Group has extensive experience, having successfully installed hundreds of pyrolysis machines worldwide. We provide comprehensive support, from initial feasibility analysis and plant design to installation, operator training, and professional after-sales service. Our equipment is certified with CE, ISO, and other international certifications, demonstrating our expertise and earning the trust of our global customers across United States, Spain, Kazakhstan, Greece, India, Indonesia, France, Thailand, Malaysia, Ghana, Australia, and Mexico.

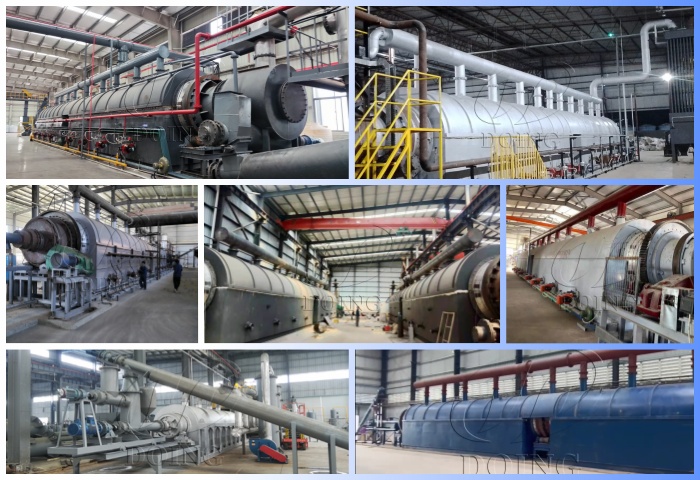

DOING continuous pyrolysis machine projects

DOING continuous pyrolysis machine manufacturer

We hope this introduction to continuous pyrolysis machines is helpful. DOING is committed to providing you with top-tier equipment, professional technical support, and comprehensive after-sales service, accompanying you on your journey toward waste management. If you are interested in continuous pyrolysis machine or would like to learn more about our continuous pyrolysis system, please feel free to contact us.
