DOING 15-Ton Batch Oil Sludge Pyrolysis System Installed for China Client's Hazardous Waste Treatment project

In March 2025, DOING Company, a professional manufacturer of pyrolysis equipment, completed the installation of a 15-ton batch oil sludge pyrolysis system for a Chinese chemical group. This equipment will be used in the group's integrated hazardous waste treatment project to process lubricating oil filter cake residue (Similar to oil-contaminated sludge pit)– a byproduct from plate and frame filter presses, which has an oil content as high as 50-60%.

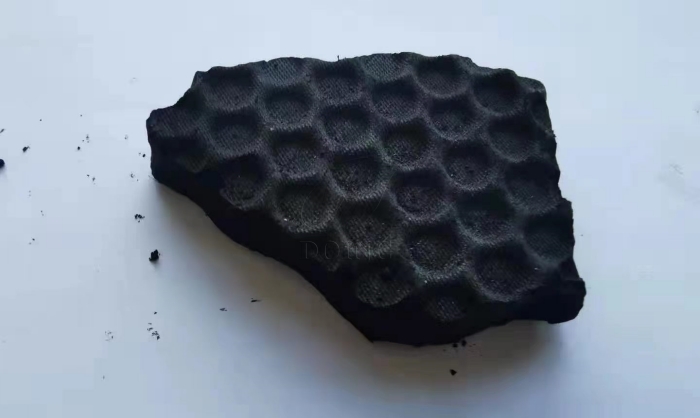

Lubricating oil filter cake resudue

The batch pyrolysis system was chosen because it is ideally suited to the unique characteristics of oil sludge filter cake. This oil sludge material has high viscosity and poor flowability, making it difficult to process using continuous methods. Batch operation allows for precise control over each pyrolysis cycle, enabling adjustments based on the complex and variable waste composition. This adaptability ensures thorough treatment of the oil sludge waste while maintaining process stability, which is crucial for hazardous materials like oil sludge filter cake that require careful management.

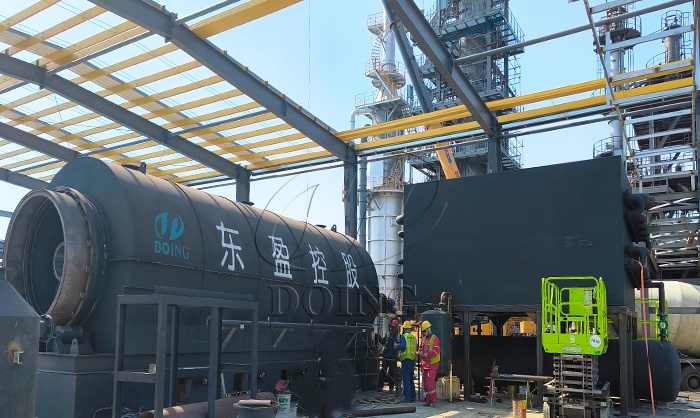

China oil sludge pyrolysis system installation site

DOING's batch oil sludge pyrolysis system design addresses the critical challenges posed by catalyst filter cake, including its corrosive nature and tendency to coke during the pyrolysis process. The reactor liner is constructed from 304 stainless steel, capable of withstanding high temperatures and chemical corrosion. To prevent coking, a decoking device is installed inside the reactor to remove deposits, thus maintaining thermal efficiency and reducing downtime. These features enhance the lifespan and stable performance of the pyrolysis system in harsh industrial environments.

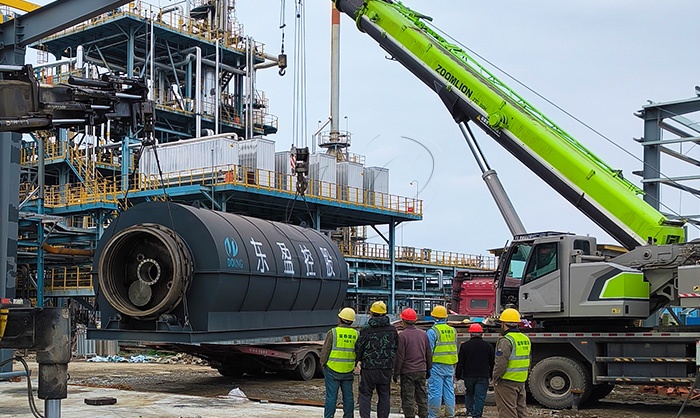

China oil sludge pyrolysis system installation site

DOING oil sludge pyrolysis system design details

The recovery of pyrolysis oil is optimized through controlled pyrolysis conditions. This batch oil sludge pyrolysis system utilizes precise temperature control to effectively volatilize oil from the oil sludge residue. Combined with DOING's efficient multi-stage oil and gas condensation system, it maximizes the condensation and collection of oil vapor, improving the yield and quality of recovered pyrolysis oil.

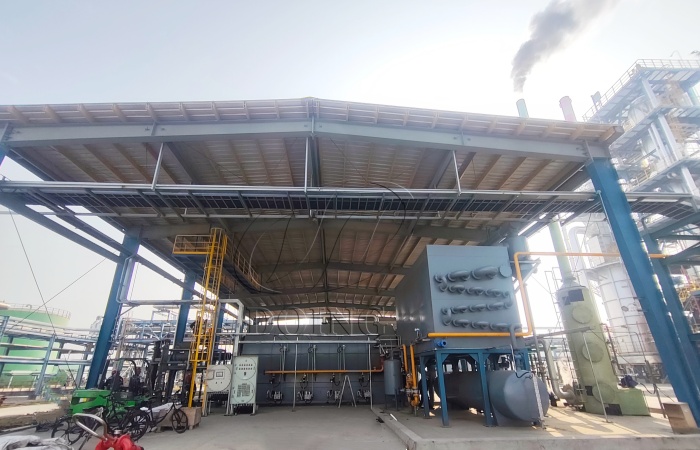

China oil sludge pyrolysis system installation site

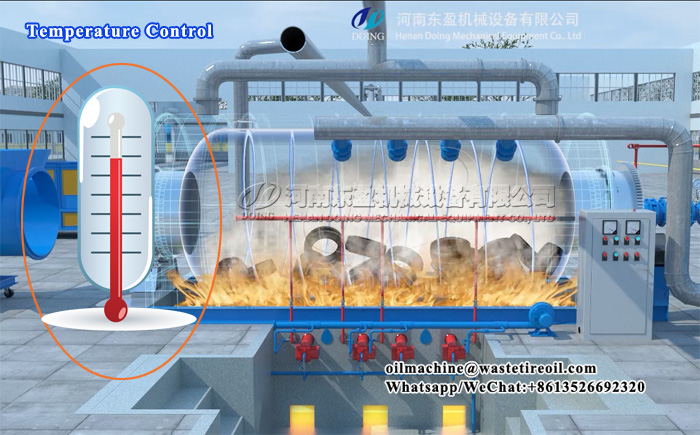

DOING oil sludge pyrolysis system temperature control system

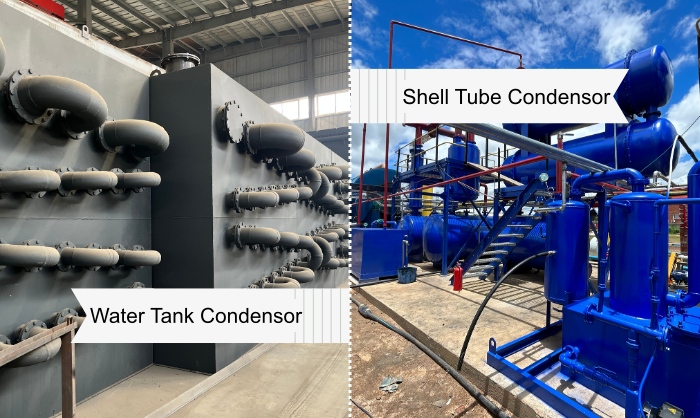

DOING oil sludge pyrolysis system condensor

Safety and environmental protection principles are integrated into the design of DOING's batch oil sludge pyrolysis system. It includes explosion-proof components, flame arresters, and an exhaust gas purification system to treat emissions, ensuring compliance with China's stringent hazardous waste treatment standards. These measures reduce the risks of the pyrolysis process and minimize environmental impact, supporting clients in meeting compliance requirements for their pyrolysis projects.

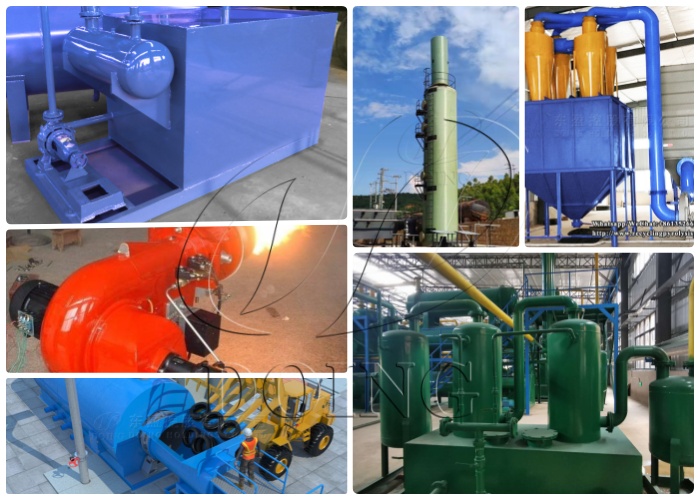

DOING oil sludge pyrolysis system safety and environmental protection devices

Upon completion of installation, this 15-ton batch oil sludge pyrolysis system is now operational, contributing to the waste management goals of our Chinese client.

DOING oil sludge pyrolysis system manufacturer

For companies and clients exploring pyrolysis projects, DOING can provide strong support with our expertise in designing adaptable pyrolysis systems for various waste streams and its approach to providing customized solutions based on material analysis and client needs. We welcome your inquiries to discuss how our pyrolysis system can support your pyrolysis projects.
