100-500 kg/day mini small scale waste plastic pyrolysis plant for sale

100-500 kg/day mini small scale waste plastic pyrolysis plant is one of our hot sale equipment, with its features of low cost, small footprint, and no installation required. Such 100-500 kg/day small scale waste plastic pyrolysis plant has the same function as other large waste plastic pyrolysis plant, mainly to convert waste plastics to fuel oil and carbon black.

The plastic to fuel oil working process includes four steps:

100-500 kg/day small scale waste plastic pyrolysis plant process

1. Pre-treatment

Waste plastic contains some water in normal condition. While if you want a higher output, you'd better do some pre-treatment. For example, the waste plastic will be through a dryer to steam the moisture. If waste plastic is too big, you can employ a crusher to make big waste plastic into small pieces.

2. Pyrolysis

Putting the pre-treated plastic into the pyrolysis plant reactor by auto-feeder, then heat the reactor, when the inside temperature reaches the degree of 250 to 280, pyrolysis of plastic will happen and the oil gas begins to generate while flow through oil gas separator.

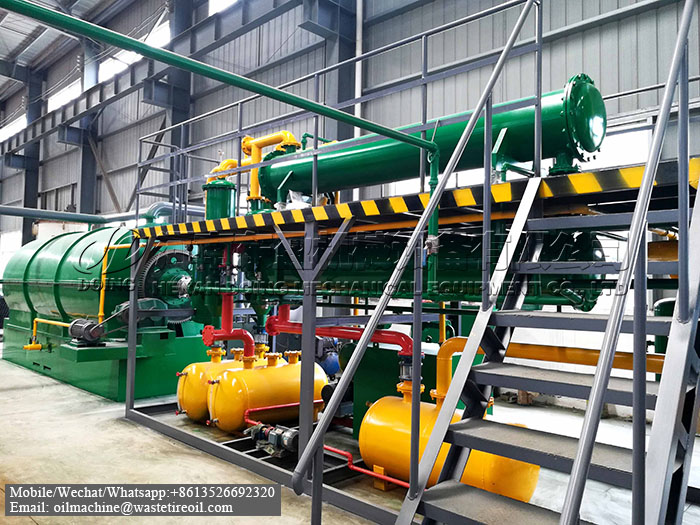

DOING mini small scale waste plastic pyrolysis plant in customer's factory

3. Condensation

In oil gas separator, heavy component will be liquefied and then automatically discharged into heavy oil tank, meanwhile, light component will enter the condensers. There most of the light component will be liquefied to fuel oil. Our unique 3-steps condensation system design can ensure the maximum condensation, thus high oil output.

4. Collection

The liquid fuel oil is temporarily stored in a oil tank. After the small scale waste plastic pyrolysis plant working process is finished, the produced liquid oil can be collected from the oil tank for sale directly. You can sell the final plastic pyrolysis oil to heavy industries like steel factories, glass factries, boilers, furnances, brick/cement factories, heavy oil power plants, etc. And you can also equipp with a set of mini small scale pyrolysis oil distillation plant to further refine the pyrolysis oil into diesel fuel.

Plastic pyrolysis oil applications

This kind of mini small scale waste plastic pyrolysis plant can not only process waste plastic, but also waste tyre, very popular among customers, which is specially suitable for customers who want to carry out the trial running or science experiment with small budget. And here is the feedback running video of 500KG mini small scale waste plastic pyrolysis plant installed in Spain for your reference. After checking the mini small scale pyrolysis plant running conditions, then you can further expand the plastic pyrolysis production line if you have needs.

Except for 100-500 kg/day mini small scale waste plastic pyrolysis plant for sale, we Henan Doing Company also supply 1TPD/2TPD/5TPD/10TPD/12TPD/15TPD/18TPD/20TPD batch waste plastic pyrolysis plant and fully continuous waste plastic pyrolysis plant for sale. Welcome contact us for more equipment information.
