What is recycling waste tyre to oil pyrolysis plant?

The recycling waste tyre to oil pyrolysis plant is a waste recycling machine that converts waste rubber,waste tyres, waste plastics and other waste materials into pyrolysis oil, carbon black and hydrocarbon gas. The recycling waste tyre to oil pyrolysis plant can reduce the volumes of the waste products and help human protect the environment. Doing recycling waste tyre to oil pyrolysis plant is comprised by five major parts- pyrolysis reactor, cooling system, safety system, smoke cleaning system and carbon black discharge system. Then let me introduce these major parts in detail for you.

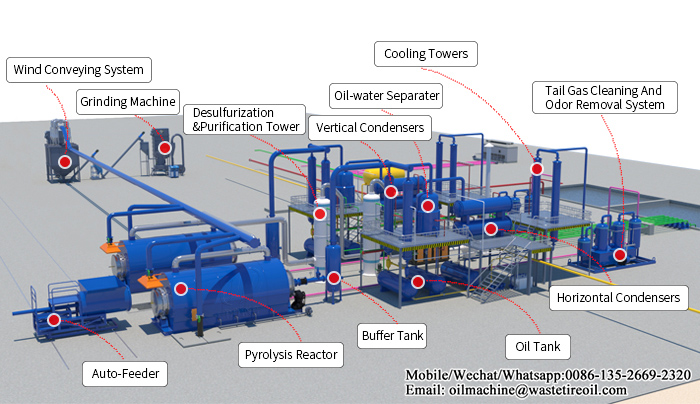

recycling waste tyre to oil pyrolysis plantRecycling waste tyre to oil pyrolysis plant

1.Pyrolysis reactor

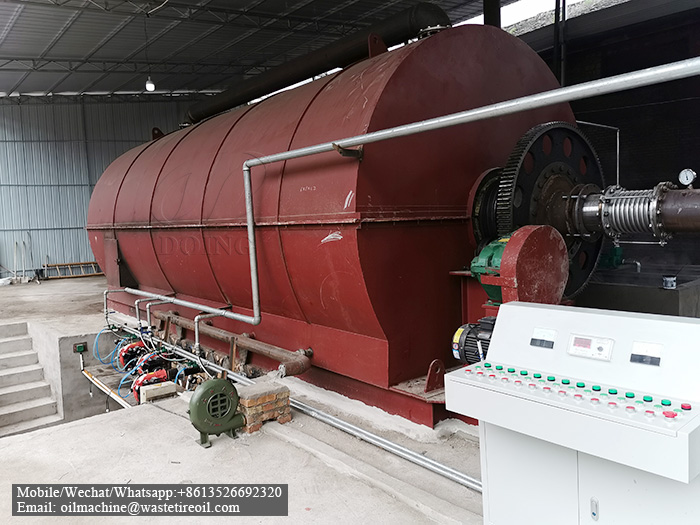

recycling waste tyre to oil pyrolysis plantPyrolysis reactor

The pyrolysis reactor is the main place to pyrolyze the waste tyres. One pyrolysis reactor is generally equipped four heating device, pyrolyzing the waste tyres need to start the heating device to make the reactor reach certain temperature. At different temperature, the waste tyres will be pyrolyzed into different states. Normally in 200℃~300℃, temperature rises the fastest, and oil gas comes out the most. Doing pyrolysis reactor adopts three-step welding process and small gear transmission which will make the reactor have a longer service life.

2.Cooling system

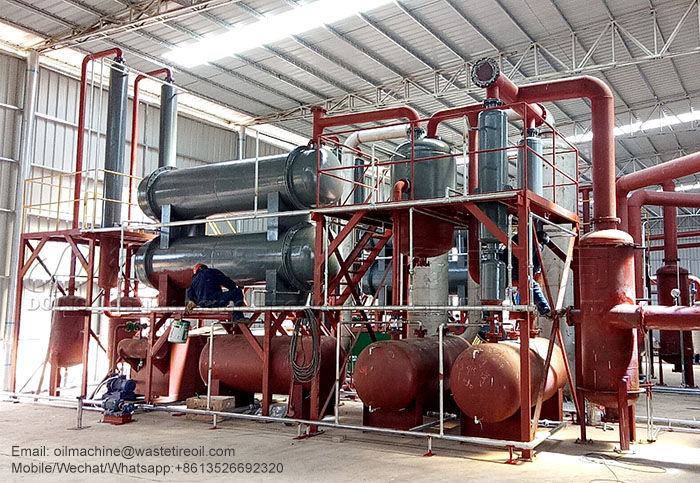

recycling waste tyre to oil pyrolysis plantCooling system

The cooling system will condense the oil gas produced by the pyrolysis reactor. When the oil gas comes out from the pyrolysis reactor, it will firstly pass two vertical condensers, some oil gas will be condensed into oil and enter the oil tank, the remain oil gas will continue pass two horizontal condensers and two cooling towers until all condensable oil gas be condensed into oil, The incondensable oil gas will be recycled to heat the reactor. The three steps cooling system adopted by Doing Group is regarded as the most efficient cooling system.

3.Safety system

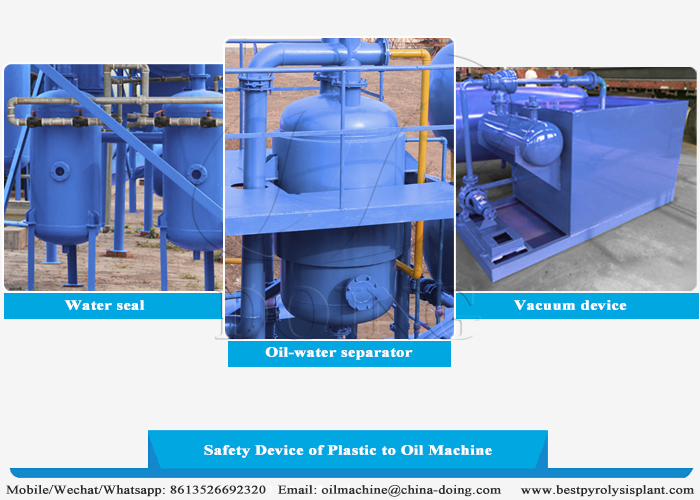

recycling waste tyre to oil pyrolysis plantSafety system

The safety system includes three safety devices-oil water separator,water seal and vacuum device. Oil-water separator is mainly used for preventing the back flow of oil gas, while water seal is for preventing the back flow of the tail gas (incondensable gas), then the vacuum device could suck out the hot oil gas left inside the reactor after pyrolysis, speed up the cooling process, ensure the safety and no smell during discharging process.

4.Smoke cleaning system

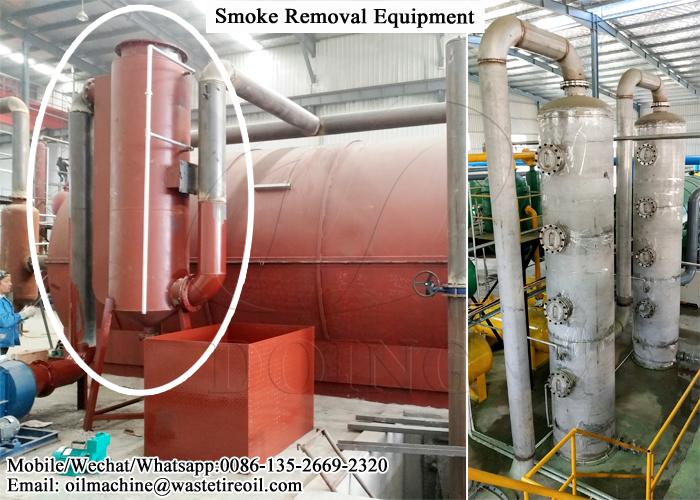

recycling waste tyre to oil pyrolysis plant Smoke cleaning system

The smoke cleaning system adopts both physical and chemical method to solve tail smoke. The tail smoke will be sucked by the draft fan,and enters the bottom of the desulfurization dedusting tower.Then the smoke spreads evenly after passing through four sprays and four layer ceramic filler, so that the smoke can be fully desulphurized by the catalyst liquid. The dust will be separated by the centrifugal force, and adsorbed by the water. Through the smoke cleaning system, Doing recycling waste tire to oil pyrolysis plant can realize no pollution to environment.

5.Carbon black discharge device

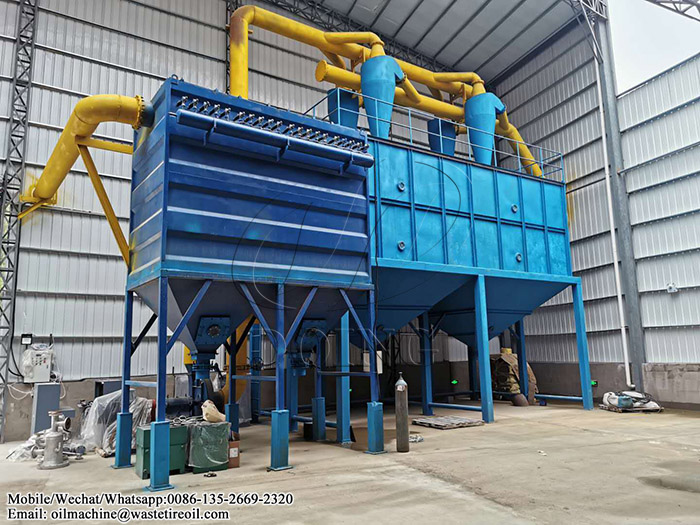

recycling waste tyre to oil pyrolysis plantCarbon black discharge device

The carbon black discharge device can transport the carbon black from the collecting tank without any dust. This device can keep the factory clean and reduce the dust pollution.

Here is a technical parameter of Doing recycling waste tyre to oil pyrolysis plant:

Items Plants Waste plastic to fuel oil plant
Model DY-1T, DY-6T,DY-8T,DY-10T...
Raw material Waste plastic or rubber tyres
Structure form Horizontal rotation
Heating method Direct heating
Operating pressure Normal pressure
Heating material Fuel oil, LPG, Natural gas, Coal, Wood
Average out-put rate Different types of plastic have different oil yield, generally is around 60%
Material of reactor 4 reactor with different material
Thickness of reactor 14mm/16mm/18mm
Mode of cooling Circulating waster cooling
Power in total 15kw
Service life Average 6 years
Land area 500㎡

Now, you should have a general understanding about recycling waste tyre to oil pyrolysis plant, if you are interested in this plant, welcome to contact us, we Doing group will be your best choice.
