Plastic to oil conversion machine

Plastic to oil conversion machine is getting more and more popular around the world in recent years. Since 2011, DOING has successfully installed the plastic to oil conversion machine in more than 60 countries, such as India Mexico, Nigeria, Egypt, Ukraine, Turkey, Macedonia, Romania, Albania, Serbia, Philippines, Malaysia, Indonesia, etc. It has been widely recognized at home and abroad, with superior performance, competitive price, high efficiency, maintenance convenience and cost saving.

plastic to oil conversion machineDOING plastic to oil conversion machine project cases in some countries

Plastic to oil conversion machine is also called waste plastic pyrolysis plant, capable of bringing plastic waste back to its original state: oil. Almost all kinds of plastics can be processed by DOING plastic to oil conversion machine, including PE, PP, PS, ABS, paper-mill waste, etc. Every year, over 260 million tons of plastic are produced throughout the world, so it is very easy to collect and the cost is comparatively low, and some countries may even provide subsidies for waste plastic recycling business. What's more, the oil yield of waste plastic is relatively high. For every 1 ton pure PE plastics, 950kg oil can be harvested which is a good fuel used in industries and can be further refined into diesel for much wider application. Besides, carbon black is produced as the by-product and it could be made into pellets for burning and heating, just like coal, or refining for making new rubber products.

plastic to oil machinePlastic to oil conversion machine for plastic to fuel oil and carbon black

It is worth mentioning that the operation of plastic to oil conversion machine is easy, only 2~3 worker is needed. Firstly, place plastic waste into pyrolysis reactor, and heat reactor by coal, wood, fuel oil, etc until the temperature inside rises slowly to 230℃-300℃ when the plastic begins to be cracked into a gas. The oil gas passes through 3 steps condensers filled with cold water, and is cooled into oil. At last, the carbon black is discharged automatically. The tail gas is cleaned before emitted, so there are no pollution to environment through the whole process. Here you can see a video to know how to convert plastic into oil.



DOING plastic to oil conversion machine is recognized by CE and ISO and has its unique advantages:

1. High oil yield

Our pyrolysis reactor adopts 360 degree rotation heating design to ensure waste plastic fully cracked; our cooling system includes 2 vertical condensers, 2 horizontal condensers and 2 cooling tower, the total heat exchanging area is about 104 m², thus the gas can be completely cooled into oil, increase the output.

plastic to oil machineDOING 3 steps cooling system for higher efficiency

2. Long service life

One of the most important equipment of plastic to oil conversion machine is pyrolysis reactor, so DOING pays special attention to its quality. After years of research, we develop DOING special design reactor, which is round shape so has very strong tension and goof connection with the reactor body, thus could not be cracked under high pressure and high temperature. The thickness of the whole reactor is 16mm to ensure high quality and long service.

plastic to oil machinePyrolysis reactor with our unique design

3. Safe

The plastic to oil conversion machine is equipped with oil-water separator, water seal and vacuum device, safety valves, pressure gauges, etc. Oil-water separator is mainly used for preventing the back flow of oil gas, while water seal is for preventing the back flow of the tail gas (uncondensable gas). And vacuum device could provide negative pressure to the system, thus to keep safe operating pressure.

plastic to oil conversion machineThe most important safety devices of plastic to oil conversion machine

4. Eco-friendly

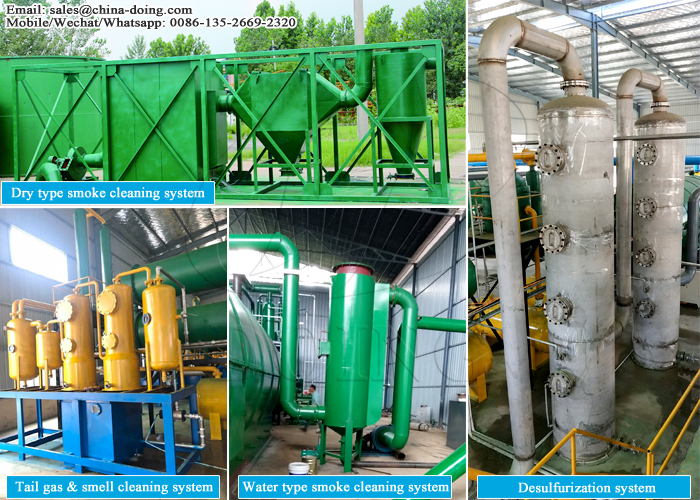

The entire process is sealed, no exhaust gas. Dedusting device can remove the dust and smoke produced by the fuel when heating the reactor, the desulfurization and deodorization tower is used to remove harmful gases from the smoke. In addition, tail gas cleaning system purify the exhaust gas to meet the standard of emission. The water used in the cooling process is circulated, so no consumption, no pollution to environment.

plastic to oil machineDOING environmental protection system

To meet different customers’ demand, we have designed different models of our plastic to oil conversion machine for sale. Here is the technical parameter of plastic to oil conversion machine for your reference.

No. Items Contents
1 Equipmenttype DY-1-6 DY-1-8 DY-1-10
2 Rawmaterial Waste plastic Waste plastic Waste plastic
3 Structuralform Horizontalrotation Horizontalrotation Horizontalrotation
4 24- hourCapacity 6ton 8ton 10ton
5 Oilyield 2.7- 3.3ton 3.6- 4.4ton 4.5- 5.5ton
6 Operatingpressure Normal Normal Normal
7 MaterialofpyrolysisReactor Q245R Q245R Q245R
8 ThicknessofpyrolysisReactor 16mm 16mm 16mm
9 RotatespeedofpyrolysisReactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Totalpower 19KW 19KW 19KW
11 Modeofcooling Watercooling Watercooling Watercooling
12 Coolingareaofcondenser 100sqm 100sqm 100sqm
13 Kindoftransmission Internalgeardrive Internalgeardrive Internalgeardrive
14 NoisedB(A) ≤85 ≤85 ≤85
15 SizeofReactor (D×L) 2200×6000 2200×6600 2600×6600
16 Workingform Intermittentoperation Intermittentoperation Intermittentoperation
17 Deliverytime 20days 20days 20days
18 Weight 27T 30T 35T
You can choose the machine according to the capacity as well as your budget. If you have any special requirement about the machine, we can also customize the machine for you. Contact us for more about the plant!
