DOING environmentally friendly lithium battery recycling equipment

DOING lithium recycling equipment is environmentally friendly through crushing, multi-level sorting and purification, and environmental protection equipment. Its equipment adopts physical recycling methods, which is zero chemical pollution, efficient use of resources, and significant emission reduction effects and meets international environmental protection standards. It has been exported to the United States, Germany, Russia, etc. ‌Next, we will introduce to you how lithium battery recycling equipment can meet environmental protection requirements.

DOING environmentally friendly lithium recycling equipment

1. Basic process of DOING lithium recycling equipment

Manual sorting: Inactive materials such as battery shells and electrode connectors are manually removed to prepare for subsequent recycling processes.

Discharge treatment: The residual power of the battery is released, which effectively avoids the risk of short circuit and ensures safe operation.

Crusher of DOING environmentally friendly lithium battery recycling equipment

Coarse crushing: The shredder in the breaks down the waste lithium battery into 10-50mm fragments, breaking the internal structure of the battery for subsequent processing.

Fine crushing: The double-shaft crusher further refines the fragments to 0.1-1mm, allowing the positive and negative active substances to be released.

Multistage sorting equipment of DOING environmentally friendly lithium battery recycling machine

Magnetic separation: Through the magnetic separator of the DOING lithium recycling machine, magnetic materials such as iron and nickel are adsorbed, and non-magnetic materials enter the next stage.

Drum screening machine: The cylindrical drum with multiple layers of screens (aperture 1-20mm) driven by an electric motor rotates at a constant speed. The material falls freely after being lifted by the drum and is classified according to particle size. This process can separate large pieces of metal (>20mm), diaphragm fragments (5-10mm) and black powder (1-2mm), with a separation accuracy of ≥95%, and an hourly processing capacity of 1-5 tons.

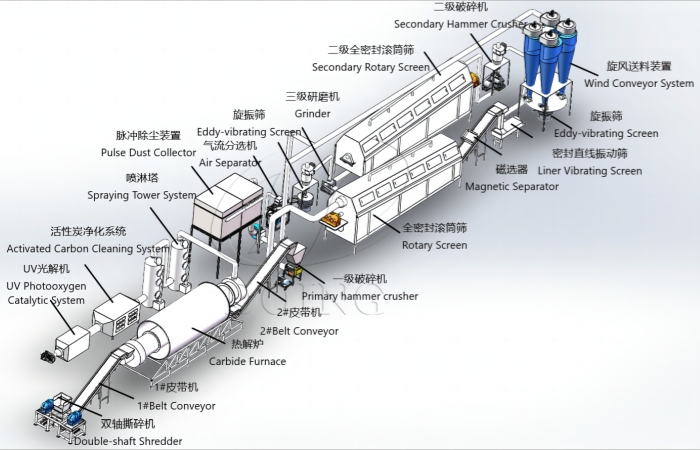

Full process display of DOING environmentally friendly lithium recycling equipment

Linear screening machine: The vibration motor drives the screen to move in a straight line, and the material is thrown up and down on the screen surface to achieve fine screening of black powder (such as 100-500 mesh). Its processing efficiency is 20% higher than that of drum screening, and it is suitable for dry and low-viscosity materials.

Vibration screening machine: Screen the crushed powder according to particle size to improve the purity of the material and help the efficient operation of DOING Eco-friendly lithium recycling equipment.

Airflow sorting: The airflow sorting system adjusts the wind speed (5-20m/s) and separates copper and aluminum particles (density 8-9g/cm³) from black powder (2-3g/cm³) according to density differences. The recovery rate of black powder is > 95%.

Pluse dust collector of DOING environmentally friendly lithium battery recycling equipment

Pulse dust collector: Under negative pressure environment, high-efficiency filter bags are used to capture 99% of micro-level dust to ensure that the dust concentration in the working area meets environmental protection requirements.

2. Environmental advantages of DOING lithium recycling equipment

DOING environmentally friendly lithium battery recycling equipment advantages

Zero chemical pollution: Environmentally friendly DOING lithium recycling equipment does not use acid-base leaching or high-temperature smelting throughout the process, achieving no wastewater or waste residue discharge.

Efficient utilization of resources: 340kg of mixed metals (aluminum、copper，black mass) can be extracted from each ton of waste batteries treated by DOING Eco Friendly lithium recycling equipment, which is equivalent to reducing 20 tons of lithium ore mining.

Significant emission reduction: Compared with hydrometallurgy, carbon emissions are reduced by 60%. For every 10,000 tons of batteries recycled, 50,000 tons of CO₂ emissions can be reduced. Waste gas and dust emissions are in compliance with EU REACH and US EPA standards.

3. Large-scale application of environmentally friendly DOING lithium recycling equipment

Profit analysis of Eco friendly DOING lithium recycling equipment

High processing capacity: A single Eco friendly DOING lithium recycling equipment production line can process up to 20,000 tons per year, which can be used to recycle mobile phone lithium batteries, plastic shell lithium batteries, soft pack lithium batteries, cylindrical lithium batteries, power lithium batteries, etc.

Resource conservation: Every 10,000 tons of lithium batteries recycled can save 120 million cubic meters of fresh water and reduce smelting energy consumption by 50%.

Closed-loop supply:Environmentally friendly DOING lithium recycling equipment realizes closed-loop supply of metal materials and reduces dependence on mineral resources.

Global application: Environmentally friendly DOING lithium recycling equipment has been exported to the United States, Germany, Russia and other countries, with an annual processing capacity of more than 100,000 tons.

 DOING environmentally friendly lithium recycling equipment manufacturer

The physical recycling technology of DOING lithium recycling equipment proves that lithium battery recycling is environmentally friendly. Its zero-pollution process, efficient resource regeneration and advanced design make it your best partner for the lithium battery recycling business. If you have lithium batteries that want to recycle, you can send us pictures and processing volume, and our project manager will provide you with a suitable quotation and relevant cases. Our company has branches and overseas warehouses in Nigeria, which can efficiently help you establish an environmentally friendly lithium battery recycling plant.
