What are the DOING machines for PV panels recycling？

Many countries pay more and more attention to PV panel recycling. Those countries have enacted policies to encourage recycling of PV panels, such as India, Thailand, Vietnam, and the United States. To support highly efficient PV panel recycling, DOING has specifically designed a series of machines, which include an aluminum frame removal machine, a glass removal machine, a crushing and grinding machine, a sorting machine, and an environmental dust removal machine.

Next I will introduce you how DOING PV panel recycling machine configurations ensures effective and environmentally friendly recycling of PV panels.

1. Comprehensive DOING PV panel recycling machine introduction

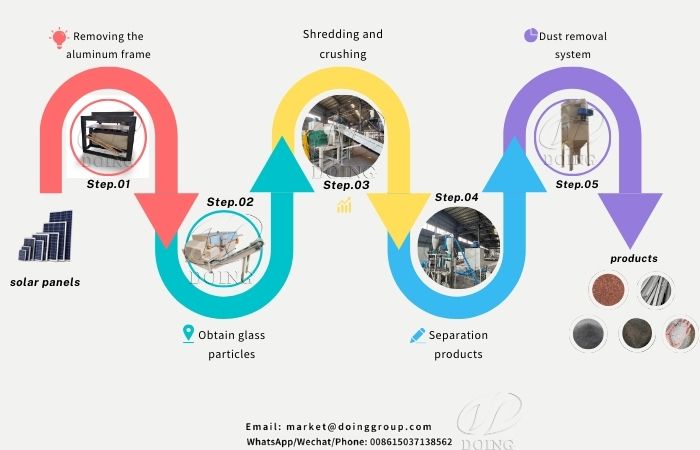

DOING uses the following machine to effectively separate and recycle the various components of PV panels (including aluminum frames, glass, metals and plastics) for reuse.

PV panels aluminum frame removal machine: The frame removal machine is mainly used to remove the aluminum frame of PV panels, it can remove various common types of PV panels, such as 1.6m, 1.9m and 2.3m. This machine can efficiently separate the aluminum material and prepare for the subsequent PV panels recycling.

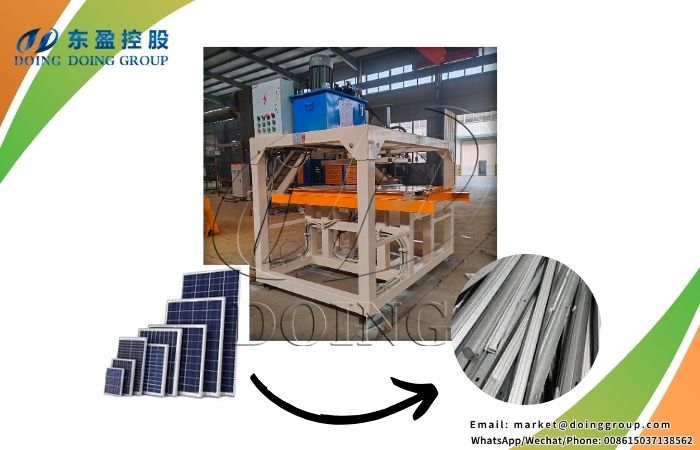

DOING PV panels aluminum frame removal machine

PV panels glass removal machine: This machine removes the crushed glass by heating at 110-120 degrees with high temperature electricity. It can remove about 30-50 pieces of glass from photovoltaic panels within 1 hour. The resulting glass particles are larger and sold at a higher price. The removed panels enter the crushing and sorting production line.

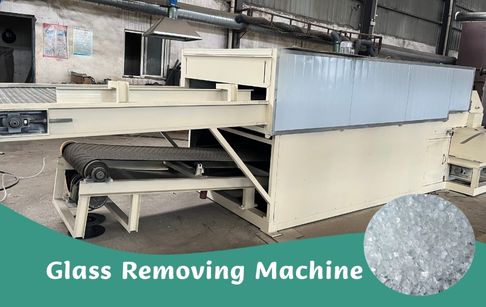

DOING PV panels glass removal machine

Crusher and grinder: The DOING machine uses a knife crusher made of SKD-11 to crush the remaining materials to less than 4mm, and then uses a knife disc grinder to make it into particles of about 20mm for subsequent sorting and processing.

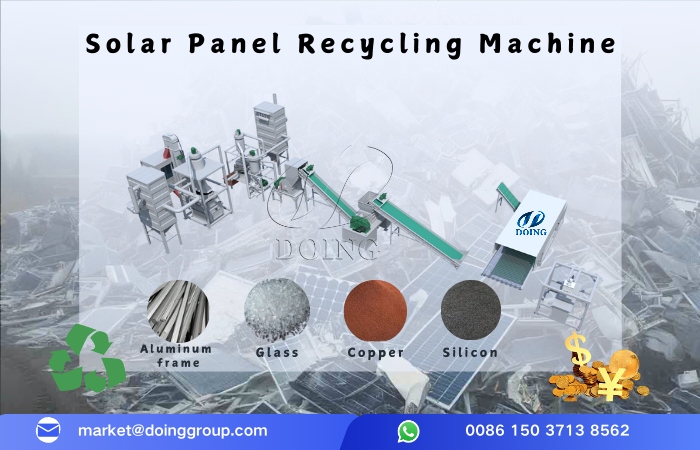

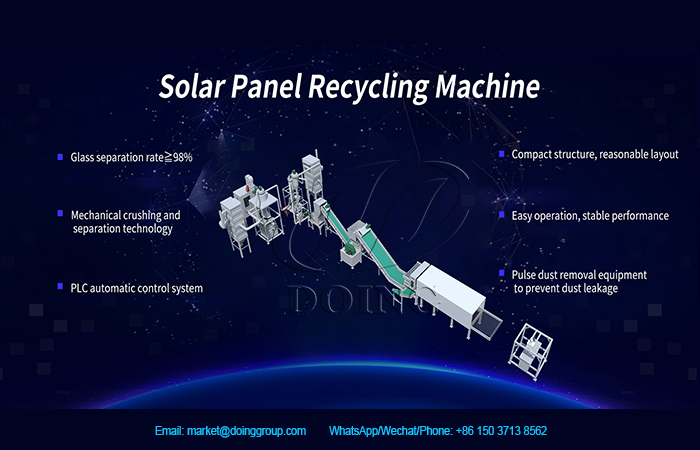

 DOING machines for PV panel recycling apparatus

Sorting machine: Through physical machines such as screening and electrostatic sorting, different materials such as metals and plastics are separated. The purity of separated copper and silicon is above 95%, and the purity of plastic is above 98%, realizing efficient recycling of PV panels.

Environmentally friendly dust removal machine: DOING is equipped with a pulse dust removal device for centralized dust removal to ensure that the PV panels recycling process is environmentally friendly and pollution-free, meeting international environmental standards such as India, Vietnam, Thailand, and EU standards.

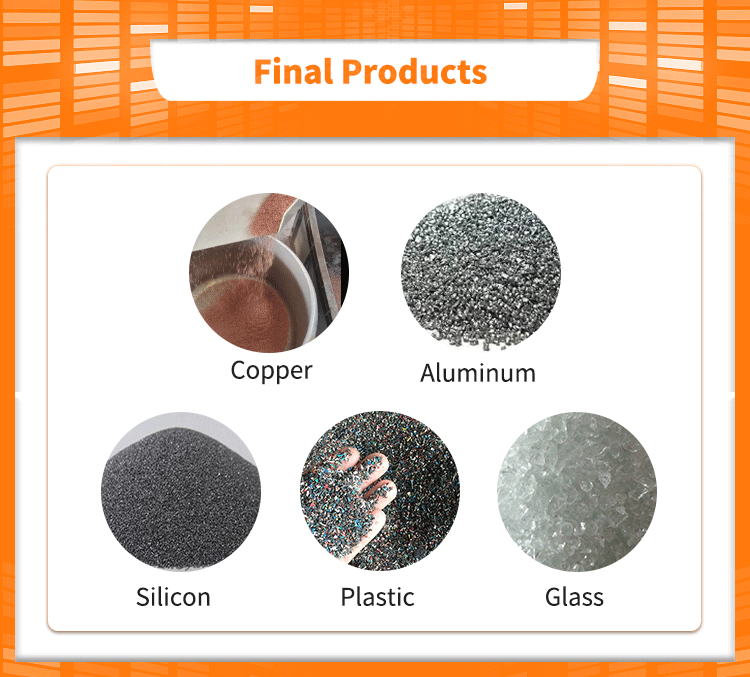

The products of PV panels recycling machine

The products of PV panels recycled by DOING's machines account for 10% aluminum frames, 70-80% glass, 2-3% copper, 5% silicon powder, and 10% plastic.

2. Advantages of DOING machines for PV panels Recycling

DOING machines for PV panels recycling stand out in this competitive landscape, offering distinct advantages that can significantly boost a recycler's bottom line:

High Efficiency: The machine is designed for maximum productivity, capable of processing large volumes of PV panels in a short time. The recycling rate of the DOING Scrap PV panels Recycling machine can reach more than 99%.

Cost-Effectiveness:DOING machines for PV panels recycling have high efficiency and advanced features, and the operational costs of DOING's machine are relatively low. This is achieved through energy-efficient designs and durable construction that minimizes maintenance needs.

DOING machines advantages for PV panels recycling

Versatility: The machine is versatile and can adapt to different types and sizes of PV panels, making it a flexible solution for recyclers dealing with a diverse waste stream.

Environmental protection: DOING machines for PV panels recycling uses advanced physical disassembly and sorting processes to effectively separate various materials from photovoltaic panels, avoiding traditional treatment methods such as incineration or landfilling, which may cause heavy metals, toxic chemicals, etc. to pollute soil and water sources, and meet international environmental protection standards.

DOING PV panels recycling machine manufacturer

Support and Training: DOING provides on-site training and remote support. Senior engineers will provide one-on-one guidance during machine installation, and remote support includes video tutorials, user manuals and 24/7 technical consultation. For new employees or process upgrades, there are also refresher courses to ensure that the team's skills keep pace with the times.

DOING PV panels recycling machine

As the demand for PV panels recycling continues to grow, DOING machines are at the forefront of providing innovative and efficient solutions. With more than 14 years of experience, DOING machines for PV panels recycling are your ideal partner with its high efficiency, low operating costs, versatility, environmental protection and full after-sales support. Choose the DOING PV panels recycling machine. We can help you quickly start the PV recycling business. You can leave your contact information. Our project manager will send you relevant cases, recommend a suitable machine and quotes. You are also welcome to bring PV panels to the factory for trial operation.
