As the volume of global electronic waste continues to soar, the recycling of capacitor electronic waste has emerged as a crucial environmental and economic imperative. Currently, there are two mainstream recycling technologies: pyrolysis and physical crushing. This article will introduce and compare these two methods, allowing you to analyze and choose the appropriate recycling method.

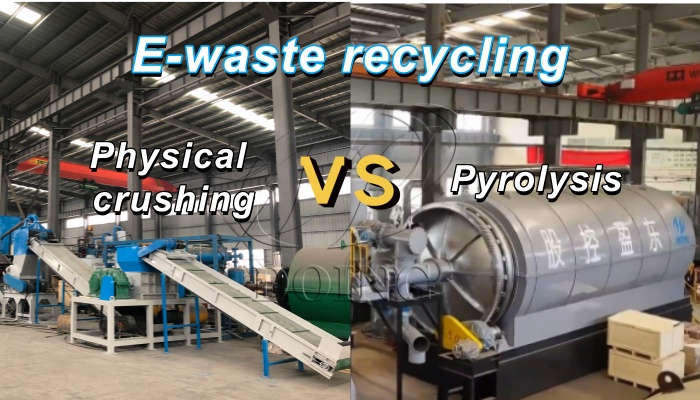

DOING capacitor electronic waste pyrolysis and physical crushing recycling technology
Composition of Capacitor Electronic Waste
Metallic materials (approximately 10% by weight): including copper, aluminum, tin, etc. These metals are valuable resources that can be recycled and reused in various industries.
Non - metallic materials (approximately 90%): such as fiberglass, phenolic resin, epoxy resin, etc. These non - metallic components are often difficult to handle and require specialized recycling techniques.
Pyrolysis Technology
Pyrolysis is a thermal decomposition process that occurs in the absence of oxygen. In the case of capacitor electronic waste, the organic components are broken down into simpler substances under high - temperature conditions. DOING Group's capacitor e - waste pyrolysis equipment operates under controlled low - temperature (300 - 450°C) conditions. In this temperature range, organic polymers such as resins and plastics in capacitor e-waste undergo pyrolysis, ultimately forming pyrolysis oil and synthesis gas as well as residue.
Key steps in the pyrolysis process:
Pretreatment (optional): Electronic components are removed and capacitor electronic waste is coarsely shredded.
Pyrolysis: Heating in an oxygen-free environment converts resins and plastics into pyrolysis gas.
Condensation and Recovery: Pyrolysis gas is condensed into oil; non-condensable gases can be recovered and used as fuel for the pyrolysis equipment.
Metal and Residue Processing: Solid residue containing metals and carbon is separated and further processed.
Emission Control: Comprehensive environmental protection equipment treats exhaust gases to ensure compliance with environmental regulations.

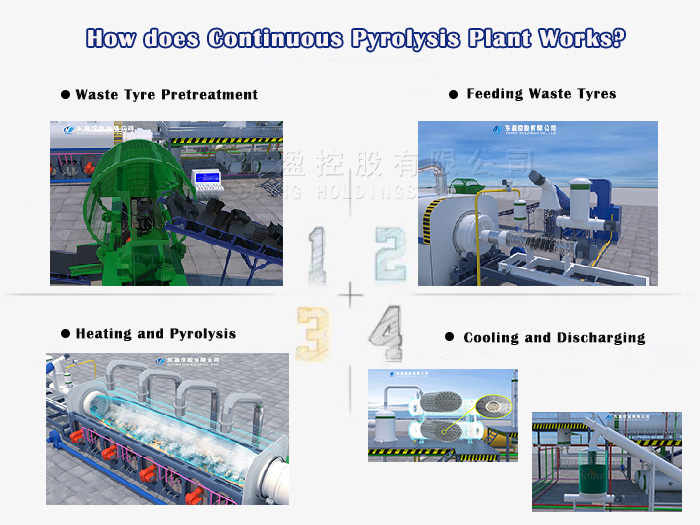

DOING capacitor electronic waste pyrolysis recycling equipment workflow
End Products of Pyrolysis
Pyrolysis Oil (22–28%): It has a high calorific value and can be used as industrial fuel or refined into diesel. The quality of the pyrolysis oil depends on the composition of the original waste and the pyrolysis conditions.

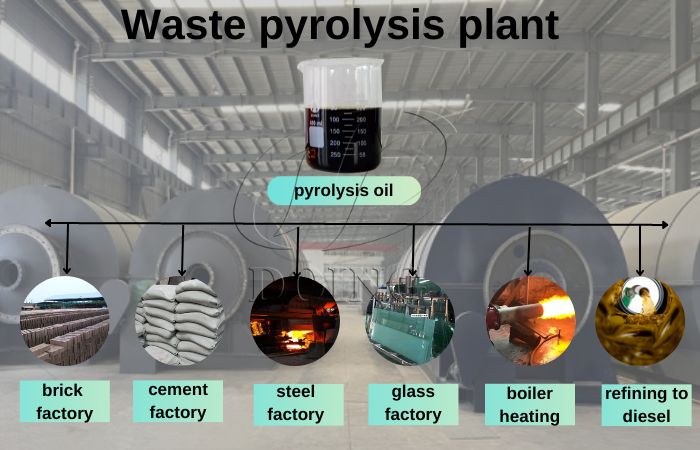

Applications of capacitor electronic waste pyrolysis oil
Pyrolysis Gas (4–6%): It mainly consists of hydrocarbons and other combustible gases. This gas can be recycled for reactor heating, reducing the need for external energy sources.
DOING capacitor electronic waste pyrolysis equipment syngas recycling system
Solid Residue (60–68%): Contains metals and carbon. The metals can be recovered and reused, while the carbon residue can be utilized as a substitute for coal in some industrial processes.
Advantages of Pyrolysis
Complete separation of metals and organic matter: Pyrolysis can effectively break down the organic components, allowing for the easy separation of metals. This leads to a higher purity of the recovered metals.
High output value: The production of pyrolysis oil and recovered metals results in a high - value output, making the recycling process economically viable.
Energy self - sufficiency: The pyrolysis gas can be used to heat the reactor, reducing the reliance on external energy sources and lowering the operating costs.
Environmentally friendly operation: With proper emission control, pyrolysis can minimize the release of harmful substances into the environment.
Physical Crushing Technology
Physical crushing is a dry mechanical separation process. DOING Group's capacitor e - waste shredding and separation system uses a series of mechanical operations, including crushing, pulverizing, screening, and dual separation technologies, to separate metals from resin and fiber. The basic principle is to break the capacitor e - waste into smaller particles and then use the differences in physical properties such as density, particle size, and magnetic properties to separate the components.

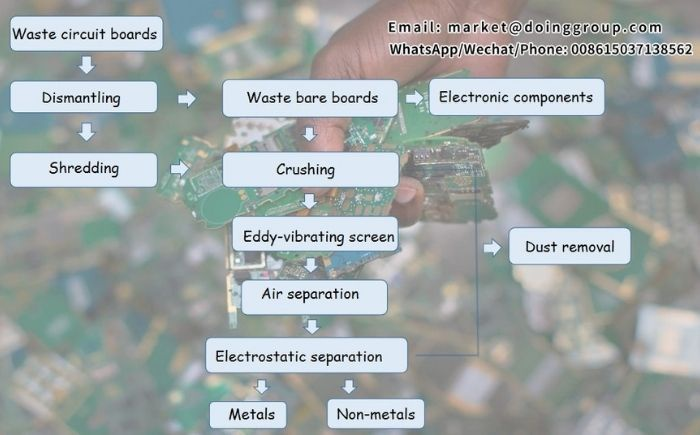

DOING capacitor electronic waste physical crushing recycling equipment work process
Output
The main output of physical crushing is mixed metal powder and non - metallic fiber/resin powder.
Mixed metal powders: Rich in copper, aluminum, and other metals, they can be sold directly to smelters.
Non-metallic powders: Primarily resin and glass fiber, they can be used as fillers in composite materials.

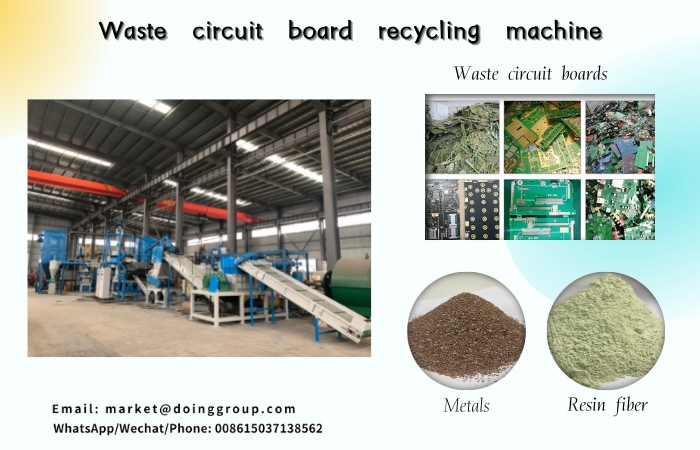

DOING capacitor electronic waste physical crushing recycling system products
Advantages of Physical Crushing
No heating required: This reduces the energy consumption and eliminates the need for complex heating equipment.
Simple operation: The process is relatively straightforward and does not require highly specialized skills or complex control systems.
Direct metal recovery: It allows for the direct recovery of metals in the form of powder, which can be further processed or sold.
DOING Group's Solutions
Whether you prefer pyrolysis or physical crushing, DOING Group offers tailored environmentally friendly solutions:
Capacitor e - waste pyrolysis equipment:
1 Customized solutions are available for daily processing capacities ranging from 100 kg to 50 tons or even larger, tailored to customer needs.
2 Skid-mounted, batch, semi-continuous, and fully continuous pyrolysis equipment options are available.

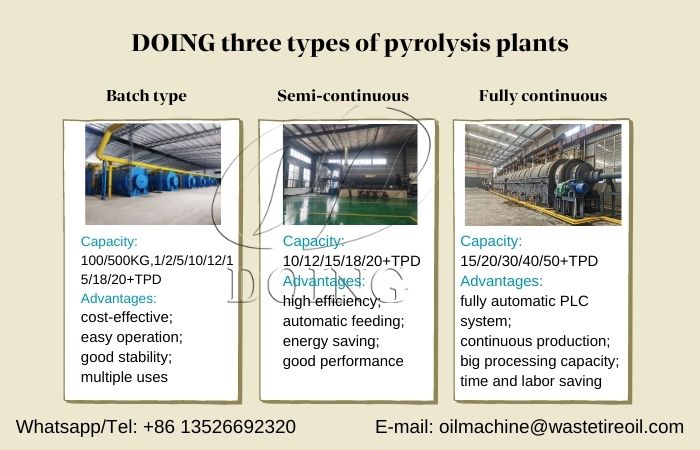

DOING capacitor electronic waste pyrolysis recycling technology equipment types
3 A PLC system can be equipped for precise temperature control throughout the entire process, ensuring stable and safe operation and significantly reducing reliance on operator expertise.
4. Multi-stage segmented condensation technology significantly improves oil and gas condensation efficiency, maximizing pyrolysis oil yield.

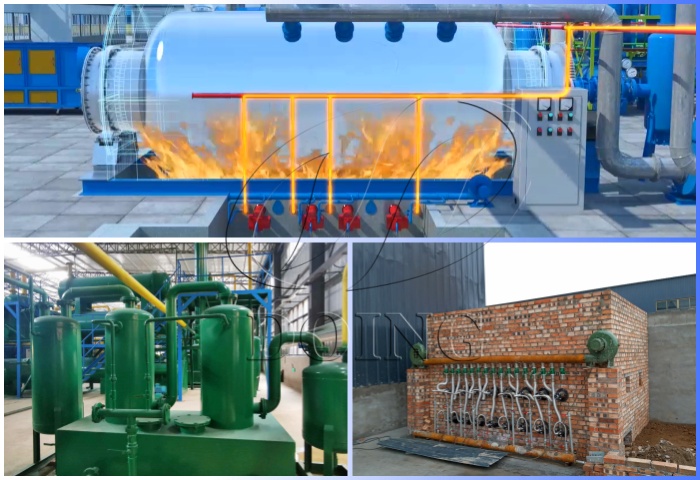

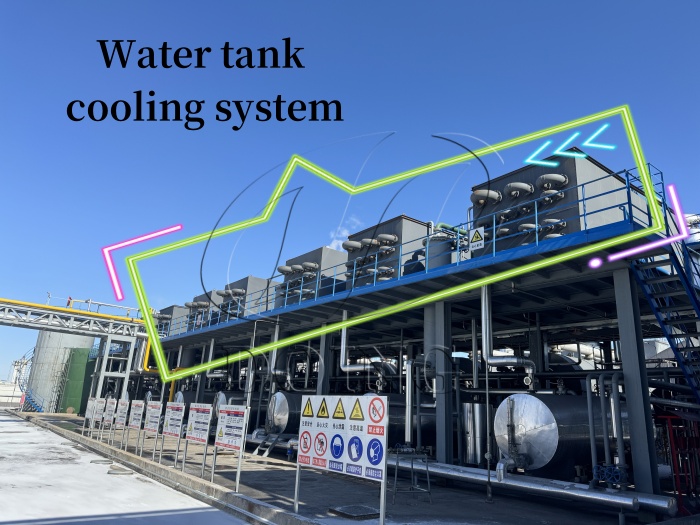

DOING capacitor electronic waste pyrolysis recycling equipment condensation system
Capacitor e - waste shredding and separation systems:
1 Processing capacities include 500 kg/hour, 1000 kg/hour, and customizable options.
DOING capacitor electronic waste physical crushing recycling equipment capacity
2 The entire production line is easy to operate, boasts high recovery efficiency, and is low-cost, suitable for large-scale industrial processing.
3 The environmentally friendly and efficient crushing and sorting system achieves a metal recovery rate of up to 98%.
4 The equipment layout can be customized to meet customer processing requirements.
5 The equipment offers stable performance, long service life, low maintenance costs, and low noise levels.
When it comes to recycling capacitor e-waste, pyrolysis and physical shredding each have their own unique advantages. Pyrolysis stands out for its maximum resource conversion rate and higher output value, while physical shredding offers a simpler, more direct method for metal recovery.
DOING capacitor electronic waste pyrolysis and physical crushing recycling equipment manufacturer
With years of expertise in waste recycling machinery, DOING Group can help you select and implement the ideal method based on your material type, output goals, and environmental priorities. If you are interested in either recycling method, please contact DOING Group.
